How to Design a Database Schema for a Social Media Platform

Introduction

Social media platforms like Twitter and Instagram look deceptively simple from the outside — users post things, follow each other, and react to content. But the data model underneath has to handle a self-referencing social graph, polymorphic likes (on both posts and comments), nested comment threads, real-time messaging with conversation groups, many-to-many hashtag relationships, and a fan-out notification system. Get the schema wrong early and you'll spend months untangling it later.

In this guide, we'll build a complete, production-grade PostgreSQL schema for a social media platform from the ground up. We'll cover:

How to model a self-referencing follow graph with a composite primary key
Why visibility and media type columns belong on posts, not in separate tables
How to handle likes on both posts and comments in a single likes table with nullable foreign keys
How to model threaded comments using a parent_comment_id self-reference
How to wire hashtags to posts with a clean many-to-many junction table
Five real-world SQL queries you'd run in production, including window functions and CTEs

Step 1: Identify the Entities

Before writing any DDL, map out what the system needs to track. A social media platform must answer questions like:

Who is on the platform? → users
What do they share? → posts with optional media
How do they react? → likes on posts and comments
How do they discuss? → comments (with replies) on posts
Who do they follow? → follows (a self-referencing graph on users)
How do they message? → conversations containing messages
What topics exist? → hashtags linked to posts via post_hashtags
What alerts do they receive? → notifications

Table	Description
`users`	Profiles with display name, bio, avatar, and verification status
`posts`	Content shared by users — text, image, or video — with visibility control
`comments`	Threaded replies on posts; supports nested replies via `parent_comment_id`
`likes`	Reactions on posts or comments (polymorphic via nullable FK columns)
`follows`	Directional follow relationships between users
`conversations`	A container for a message thread between two or more users
`conversation_participants`	Junction table linking users to conversations
`messages`	Individual messages inside a conversation
`hashtags`	Distinct hashtag names (each stored once)
`post_hashtags`	Many-to-many junction linking posts to hashtags
`notifications`	In-app alerts for likes, comments, follows, and mentions

Step 2: Define the Relationships

Understanding cardinality before writing DDL prevents the most common mistakes — missing foreign keys, incorrect composite keys, and tables that are impossible to query efficiently.

A user publishes many posts
A post has many comments; each comment can have many replies (self-referencing parent_comment_id)
A user can like many posts or comments (one likes table with two nullable FK columns)
A user can follow many other users — and be followed by many — via the self-referencing follows junction
A conversation links many users (via conversation_participants) and contains many messages
A post is associated with many hashtags, and a hashtag appears on many posts, via post_hashtags
A user receives many notifications of different types (LIKE, COMMENT, FOLLOW, MENTION)

DBA Tip: The likes table uses two nullable FK columns — post_id and comment_id — to handle polymorphic reactions in a single table. Add a CHECK constraint to ensure exactly one is populated. This is simpler than a liked_entity_type + liked_entity_id pattern, which breaks referential integrity.

Step 3: Build the Schema

We're using PostgreSQL throughout. Key design decisions:

UUID primary keys via gen_random_uuid() — opaque, safe to expose in APIs, no integer overflow risk on high-volume tables like likes and notifications
VARCHAR + CHECK instead of ENUM — easier to extend status/type values without ALTER TYPE migrations
TIMESTAMPTZ everywhere — always store timestamps with time zone
ON DELETE CASCADE on user-owned data — post, comment, follow, and notification records clean up automatically when an account is deleted
Composite primary key on follows — (follower_id, following_id) is inherently unique; no need for a surrogate follow_id

-- Enable UUID generation (required once per database)
CREATE EXTENSION IF NOT EXISTS pgcrypto;

-- ============================================================
-- USERS
-- ============================================================
CREATE TABLE users (
  user_id      UUID         PRIMARY KEY DEFAULT gen_random_uuid(),
  username     VARCHAR(50)  UNIQUE NOT NULL,
  email        VARCHAR(255) UNIQUE NOT NULL,
  password_hash TEXT        NOT NULL,
  display_name VARCHAR(100),
  bio          TEXT,
  avatar_url   VARCHAR(500),
  is_verified  BOOLEAN      NOT NULL DEFAULT FALSE,
  created_at   TIMESTAMPTZ  NOT NULL DEFAULT NOW()
);

-- ============================================================
-- POSTS
-- ============================================================
CREATE TABLE posts (
  post_id    UUID        PRIMARY KEY DEFAULT gen_random_uuid(),
  user_id    UUID        NOT NULL REFERENCES users(user_id) ON DELETE CASCADE,
  content    TEXT,
  media_url  VARCHAR(500),
  media_type VARCHAR(10)
    CHECK (media_type IN ('IMAGE', 'VIDEO', 'TEXT')),
  visibility VARCHAR(20) NOT NULL DEFAULT 'PUBLIC'
    CHECK (visibility IN ('PUBLIC', 'PRIVATE', 'FOLLOWERS_ONLY')),
  created_at TIMESTAMPTZ NOT NULL DEFAULT NOW()
);

-- ============================================================
-- COMMENTS  (threaded via self-reference)
-- ============================================================
CREATE TABLE comments (
  comment_id        UUID        PRIMARY KEY DEFAULT gen_random_uuid(),
  post_id           UUID        NOT NULL REFERENCES posts(post_id) ON DELETE CASCADE,
  user_id           UUID        NOT NULL REFERENCES users(user_id) ON DELETE CASCADE,
  parent_comment_id UUID        REFERENCES comments(comment_id) ON DELETE CASCADE,
  content           TEXT        NOT NULL,
  created_at        TIMESTAMPTZ NOT NULL DEFAULT NOW()
);

-- ============================================================
-- LIKES  (polymorphic: post like OR comment like)
-- ============================================================
CREATE TABLE likes (
  like_id    UUID        PRIMARY KEY DEFAULT gen_random_uuid(),
  user_id    UUID        NOT NULL REFERENCES users(user_id) ON DELETE CASCADE,
  post_id    UUID        REFERENCES posts(post_id)    ON DELETE CASCADE,
  comment_id UUID        REFERENCES comments(comment_id) ON DELETE CASCADE,
  created_at TIMESTAMPTZ NOT NULL DEFAULT NOW(),
  -- Exactly one of post_id or comment_id must be set
  CHECK (
    (post_id IS NOT NULL AND comment_id IS NULL) OR
    (post_id IS NULL    AND comment_id IS NOT NULL)
  ),
  -- Prevent duplicate likes
  UNIQUE (user_id, post_id),
  UNIQUE (user_id, comment_id)
);

-- ============================================================
-- FOLLOWS  (self-referencing social graph)
-- ============================================================
CREATE TABLE follows (
  follower_id  UUID        NOT NULL REFERENCES users(user_id) ON DELETE CASCADE,
  following_id UUID        NOT NULL REFERENCES users(user_id) ON DELETE CASCADE,
  created_at   TIMESTAMPTZ NOT NULL DEFAULT NOW(),
  PRIMARY KEY (follower_id, following_id),
  CHECK (follower_id <> following_id)   -- can't follow yourself
);

-- ============================================================
-- CONVERSATIONS
-- ============================================================
CREATE TABLE conversations (
  conversation_id UUID        PRIMARY KEY DEFAULT gen_random_uuid(),
  is_group        BOOLEAN     NOT NULL DEFAULT FALSE,
  created_at      TIMESTAMPTZ NOT NULL DEFAULT NOW()
);

-- ============================================================
-- CONVERSATION PARTICIPANTS
-- ============================================================
CREATE TABLE conversation_participants (
  conversation_id UUID        NOT NULL REFERENCES conversations(conversation_id) ON DELETE CASCADE,
  user_id         UUID        NOT NULL REFERENCES users(user_id) ON DELETE CASCADE,
  joined_at       TIMESTAMPTZ NOT NULL DEFAULT NOW(),
  PRIMARY KEY (conversation_id, user_id)
);

-- ============================================================
-- MESSAGES
-- ============================================================
CREATE TABLE messages (
  message_id      UUID        PRIMARY KEY DEFAULT gen_random_uuid(),
  conversation_id UUID        NOT NULL REFERENCES conversations(conversation_id) ON DELETE CASCADE,
  sender_id       UUID        NOT NULL REFERENCES users(user_id) ON DELETE CASCADE,
  content         TEXT        NOT NULL,
  is_read         BOOLEAN     NOT NULL DEFAULT FALSE,
  created_at      TIMESTAMPTZ NOT NULL DEFAULT NOW()
);

-- ============================================================
-- HASHTAGS  (each tag stored once)
-- ============================================================
CREATE TABLE hashtags (
  hashtag_id UUID         PRIMARY KEY DEFAULT gen_random_uuid(),
  name       VARCHAR(100) UNIQUE NOT NULL
);

-- ============================================================
-- POST_HASHTAGS  (many-to-many junction)
-- ============================================================
CREATE TABLE post_hashtags (
  post_id    UUID NOT NULL REFERENCES posts(post_id)       ON DELETE CASCADE,
  hashtag_id UUID NOT NULL REFERENCES hashtags(hashtag_id) ON DELETE CASCADE,
  PRIMARY KEY (post_id, hashtag_id)
);

-- ============================================================
-- NOTIFICATIONS
-- ============================================================
CREATE TABLE notifications (
  notification_id UUID        PRIMARY KEY DEFAULT gen_random_uuid(),
  user_id         UUID        NOT NULL REFERENCES users(user_id) ON DELETE CASCADE,
  type            VARCHAR(20) NOT NULL
    CHECK (type IN ('LIKE', 'COMMENT', 'FOLLOW', 'MENTION')),
  reference_id    UUID,       -- ID of the related post, comment, or user
  is_read         BOOLEAN     NOT NULL DEFAULT FALSE,
  created_at      TIMESTAMPTZ NOT NULL DEFAULT NOW()
);

-- ============================================================
-- INDEXES
-- ============================================================
CREATE INDEX idx_posts_user_created        ON posts(user_id, created_at DESC);
CREATE INDEX idx_posts_visibility          ON posts(visibility);
CREATE INDEX idx_comments_post             ON comments(post_id, created_at ASC);
CREATE INDEX idx_comments_parent           ON comments(parent_comment_id);
CREATE INDEX idx_likes_post                ON likes(post_id);
CREATE INDEX idx_likes_comment             ON likes(comment_id);
CREATE INDEX idx_follows_following         ON follows(following_id);
CREATE INDEX idx_messages_conversation     ON messages(conversation_id, created_at ASC);
CREATE INDEX idx_messages_sender           ON messages(sender_id);
CREATE INDEX idx_post_hashtags_hashtag     ON post_hashtags(hashtag_id);
CREATE INDEX idx_notifications_user_unread ON notifications(user_id, is_read, created_at DESC);

Step 4: ER Diagram

The entity-relationship diagram for this schema at a high level:

Scroll or pinch to zoom · drag to pan · double-click to zoom in

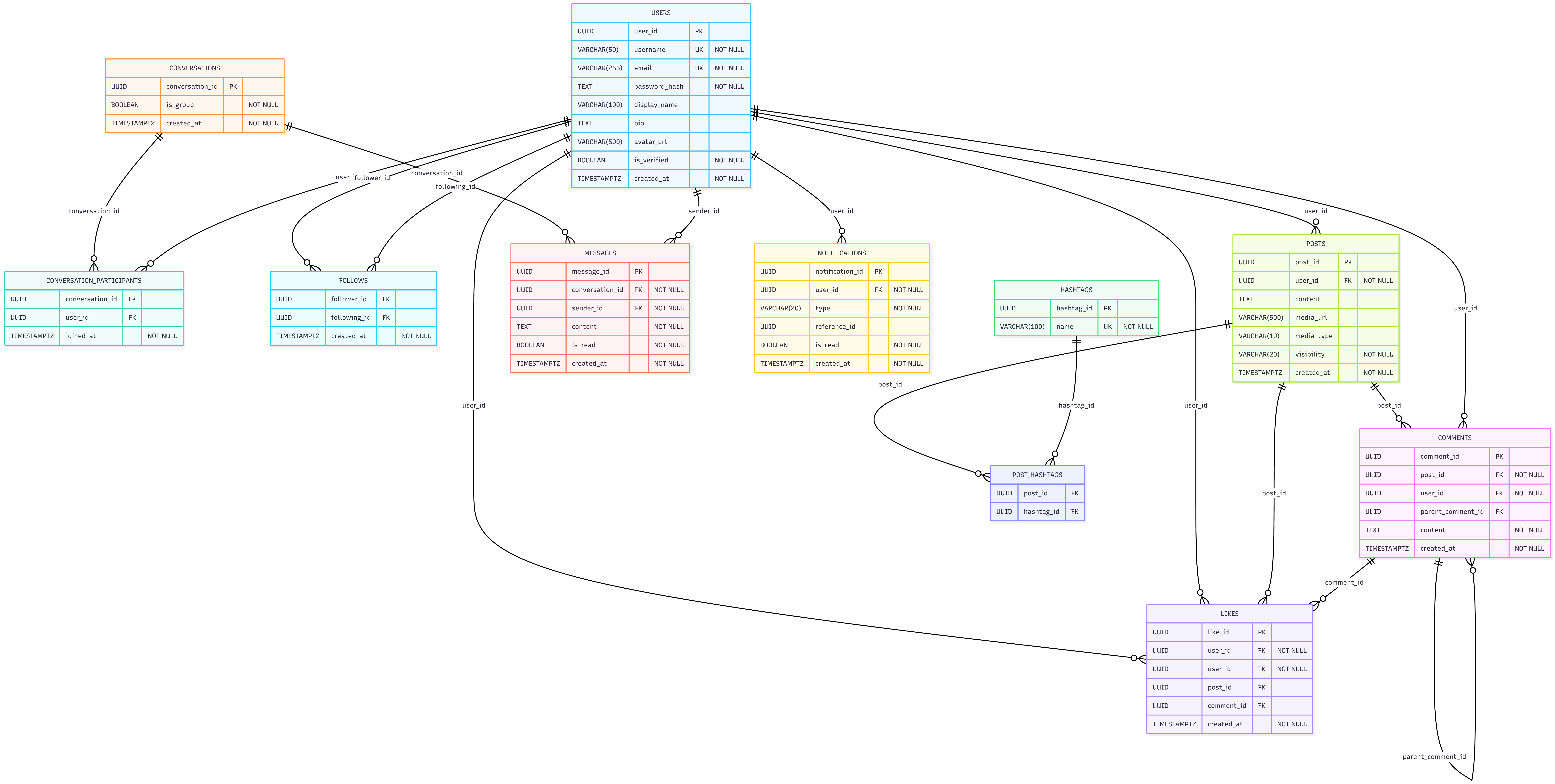

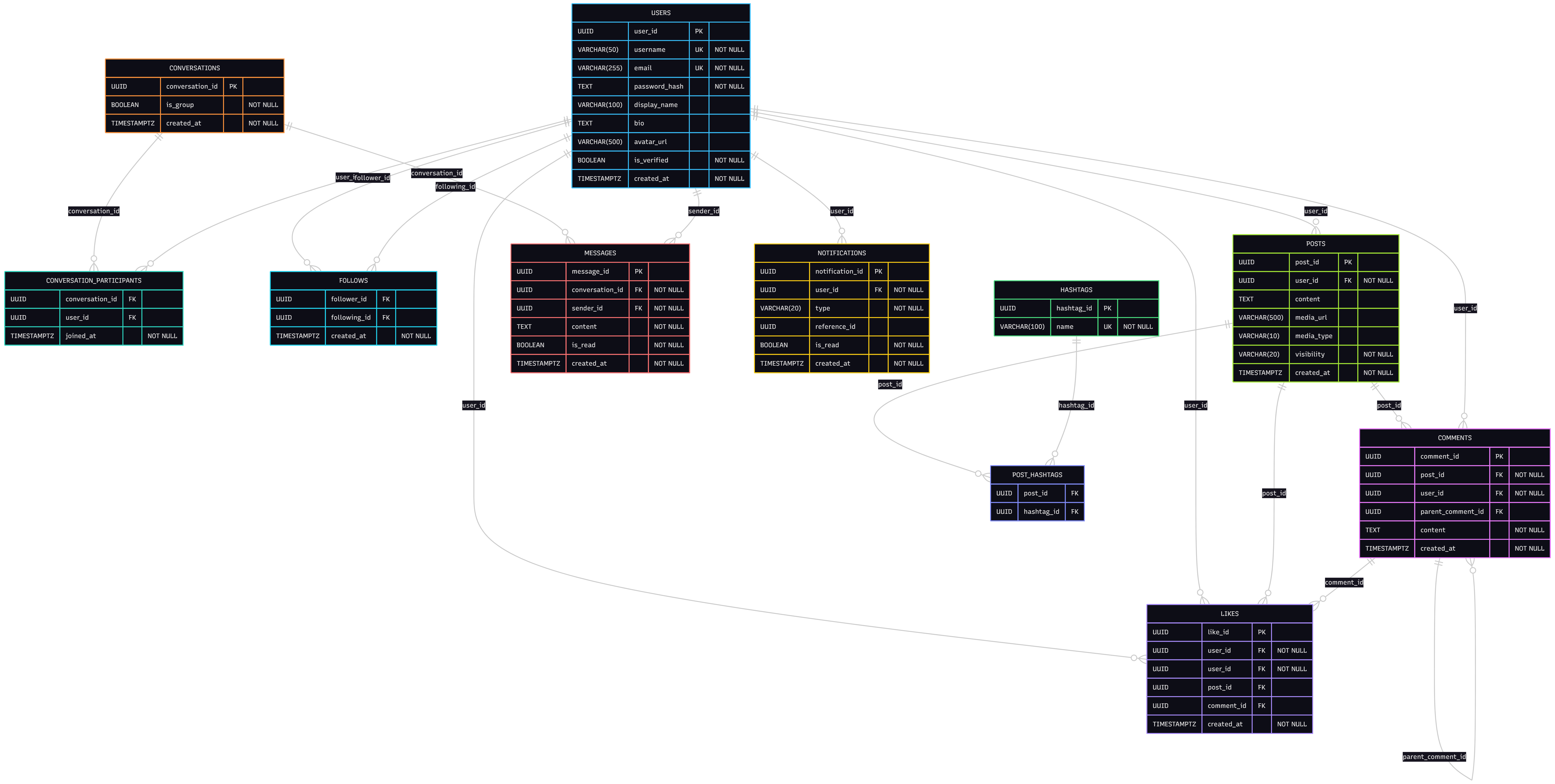

Entity-relationship diagram for the social media platform booking schema

Entity-relationship diagram — social_media_platform

The follows table is a self-referencing many-to-many junction on users — the same pattern appears in likes (polymorphic) and post_hashtags (classic many-to-many). Notice that comments is self-referencing too: parent_comment_id points back to the same table to support threaded replies at any depth.

Step 5: Example Queries

Query 1 — User Feed (Posts from Followed Accounts)

The core feed query: find recent public posts from everyone the current user follows, newest first.

SELECT
  p.post_id,
  u.username,
  u.avatar_url,
  p.content,
  p.media_url,
  p.media_type,
  p.created_at,
  COUNT(DISTINCT l.like_id)    AS like_count,
  COUNT(DISTINCT c.comment_id) AS comment_count
FROM follows f
JOIN users  u ON f.following_id = u.user_id
JOIN posts  p ON u.user_id = p.user_id
LEFT JOIN likes    l ON p.post_id = l.post_id
LEFT JOIN comments c ON p.post_id = c.post_id
WHERE f.follower_id  = 'your-user-uuid-here'
  AND p.visibility  IN ('PUBLIC', 'FOLLOWERS_ONLY')
  AND p.created_at  >= NOW() - INTERVAL '7 days'
GROUP BY p.post_id, u.username, u.avatar_url, p.content,
         p.media_url, p.media_type, p.created_at
ORDER BY p.created_at DESC
LIMIT 50;

DBA Tip: Filtering on created_at >= NOW() - INTERVAL '7 days' before the aggregation dramatically reduces the number of rows the database has to process. On large tables, always filter on indexed columns early.

Query 2 — Trending Hashtags in the Last 24 Hours

Count how many posts used each hashtag in the past day, then rank them. This is the data behind a "Trending" sidebar.

SELECT
  h.name                AS hashtag,
  COUNT(ph.post_id)     AS post_count
FROM post_hashtags ph
JOIN hashtags h ON ph.hashtag_id = h.hashtag_id
JOIN posts    p ON ph.post_id    = p.post_id
WHERE p.created_at  >= NOW() - INTERVAL '24 hours'
  AND p.visibility   = 'PUBLIC'
GROUP BY h.hashtag_id, h.name
ORDER BY post_count DESC
LIMIT 10;

Query 3 — Mutual Followers Between Two Users

Find users that both User A and User B follow — the "mutual friends" concept. A CTE keeps the logic readable.

WITH followers_of_a AS (
  SELECT following_id
  FROM follows
  WHERE follower_id = 'user-a-uuid-here'
),
followers_of_b AS (
  SELECT following_id
  FROM follows
  WHERE follower_id = 'user-b-uuid-here'
)
SELECT
  u.user_id,
  u.username,
  u.display_name,
  u.avatar_url
FROM followers_of_a fa
JOIN followers_of_b fb ON fa.following_id = fb.following_id
JOIN users u            ON fa.following_id = u.user_id
ORDER BY u.username;

Query 4 — Unread Message Count Per Conversation

Useful for rendering a conversation list with badge counts — show how many unread messages each conversation has for the current user.

SELECT
  cp.conversation_id,
  COUNT(m.message_id) FILTER (WHERE m.is_read = FALSE
                                AND m.sender_id <> 'your-user-uuid-here') AS unread_count,
  MAX(m.created_at)                                                         AS last_message_at
FROM conversation_participants cp
JOIN messages m ON cp.conversation_id = m.conversation_id
WHERE cp.user_id = 'your-user-uuid-here'
GROUP BY cp.conversation_id
ORDER BY last_message_at DESC;

DBA Tip: The FILTER (WHERE ...) clause is a PostgreSQL extension to the SQL standard that lets you apply a condition to a single aggregate without a subquery or CASE expression. It's cleaner and often faster than SUM(CASE WHEN ... THEN 1 ELSE 0 END).

Query 5 — Most Liked Posts This Week

Use a window function to rank posts by like count within the current week. A RANK() window function handles ties correctly — two posts with the same like count share the same rank.

SELECT
  p.post_id,
  u.username,
  LEFT(p.content, 100)             AS content_preview,
  COUNT(l.like_id)                 AS like_count,
  RANK() OVER (ORDER BY COUNT(l.like_id) DESC) AS rank
FROM posts p
JOIN users u ON p.user_id = u.user_id
LEFT JOIN likes l ON p.post_id = l.post_id
WHERE p.created_at >= DATE_TRUNC('week', NOW())
  AND p.visibility  = 'PUBLIC'
GROUP BY p.post_id, u.username, p.content
ORDER BY like_count DESC
LIMIT 20;

Extensibility

This schema is a solid foundation, but a production social media platform will keep growing. Here's how to extend it cleanly:

Feature	Extension
Stories / Reels	Add a `stories` table (similar to `posts`) with a `expires_at` column and a `story_views` table; archive expired stories rather than deleting them
Bookmarks	Add a `bookmarks` table (`user_id`, `post_id`, `created_at`) with a unique constraint on the pair
Blocked Users	Add a `blocks` table (`blocker_id`, `blocked_id`, composite PK) and filter blocked users out of feed and search queries
Mentions	Parse `@username` in post content at write time, insert a row into `notifications` with `type = 'MENTION'` and `reference_id = post_id`
Content Moderation	Add a `content_reports` table (`reporter_id`, `post_id` or `comment_id`, `reason`, `status`) with a moderation queue view
Analytics	Materialise daily counts (impressions, likes, followers gained) into a `user_analytics_daily` table via a scheduled job to avoid expensive real-time aggregation

DBA Tip: The notifications table can grow extremely fast on a busy platform. Partition it by created_at range (monthly slices) and set a retention policy — most users only care about notifications from the last 90 days. Archiving or dropping old partitions is a metadata-only operation in PostgreSQL, with no locking on the active data.

Summary

We've built a complete social media schema in PostgreSQL covering:

A user profile table that anchors the entire graph
A posts table with visibility control and media type metadata so the application can render content correctly without extra lookups
A self-referencing comments table that supports threaded replies at any depth via parent_comment_id
A polymorphic likes table with CHECK constraints that enforce exactly one target (post or comment) while preserving full referential integrity
A self-referencing follows graph with a composite primary key and a self-follow guard
A conversation + participants + messages model that supports both DMs and group chats without schema changes
A clean hashtag many-to-many via post_hashtags — each tag stored once, linked to many posts
A notifications table that covers the four core event types with a reference_id pointer back to the source entity
Production-ready details — UUID keys, VARCHAR + CHECK constraints, TIMESTAMPTZ, cascading deletes, and a targeted index strategy

From here, try running these queries on your own PostgreSQL instance, sketching the full ER diagram, or experimenting with the FILTER aggregate and RANK() window function queries in SQLExplain.ai.

How to Design a Database Schema for a Social Media Platform in PostgreSQL
